DMX Wireless 2.4G Transmitter & Receiver — 300M Range, 126 Auto-Hopping Channels (Receiver/Combo/Bundle)

Wireless DMX Without Compromise. 300 Meters. No Latency. Infinite Setups.

Cut the cables. Keep the control. SHEHDS wireless DMX transceivers eliminate the wiring nightmare of multi-venue touring, festival setups, and complex stage layouts—while maintaining real-time, zero-latency command transmission. Whether you're running a single receiver for your main rig or building a six-receiver network for distributed lighting across a massive outdoor event, this 2.4G system adapts to any scale. 126 auto-hopping channels prevent interference and cross-talk, even in crowded RF environments. Plug in, set the ID code, and your lighting responds instantly—exactly like a wired system, only free.

Why Pros Choose This
2.4G ISM frequency with 126 auto-hopping channels provides professional-grade interference rejection in dense RF environments (festivals, stadiums, multi-event venues). Real-time DMX512 protocol transmission with zero latency—your lighting console perceives no difference between wired and wireless. 300-meter line-of-sight range covers most venue sizes; transmitter and receivers communicate reliably across complex stage geometries. Settable ID codes support up to 7 independent wireless networks operating simultaneously in the same location—perfect for multi-band festivals, touring shows, or co-promoted events. Compact form factor (8 × 2.5 × 2.5cm) and lightweight (45g per unit) minimize rig footprint; standard 3-pin XLR female connector integrates seamlessly with any DMX512 lighting fixture or controller. Tricolor LED indicators (red/green/amber) display sync status, frequency hopping, and connection health at a glance. Input voltage 5VDC 500mA MIN keeps power draw minimal; optional AC adapter (90-240V) available for stationary transmitter installations. Professional certification (CE, EAC, FCC, RoHS, UL, WEEE) ensures reliability across North American and European touring. Bundle options (receiver only to 1T6R) let you scale from single-rig wireless control to full distributed venue systems.

Compatible With

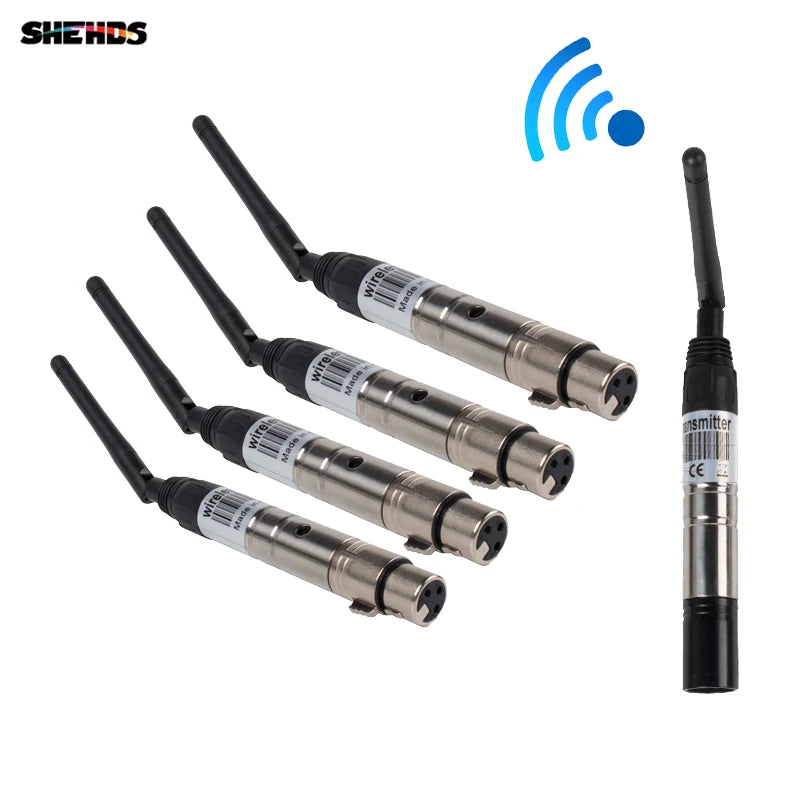

All DMX512 lighting fixtures and controllers. Moving head lights, LED par fixtures, intelligent stage lights, scan lights, beam lights, and any device accepting standard 3-pin XLR female DMX input. Multiple transmitters can daisy-chain through receivers; one transmitter controls up to six simultaneous receivers (1T6R configuration). Works seamlessly with wired DMX chains (transmitter on console, receivers replacing wired connections throughout the venue).

Perfect For
Touring DJs and mobile entertainment companies eliminating cable setup time. Festival and outdoor event managers covering large areas without running hundreds of feet of XLR. Theater and performance venues with complex lighting rigs spanning multiple rooms or levels. Rental companies offering wireless DMX as a premium upsell to clients. Multi-band or multi-venue events needing independent wireless networks (7 ID codes = 7 simultaneous setups). Live streaming events and broadcast productions where camera movement requires wireless lighting sync. Studio productions and concert venues avoiding re-runs of cable trenching during layout changes. Any professional lighting scenario where wired DMX is impractical or impossible.

Technical Specs
Brand: SHEHDS | System: 2.4G Wireless DMX512 Transceiver | Connector: 3-Pin XLR Female (standard DMX) | Frequency: 2.4G ISM, 126 auto-hopping channels | Communication Range: 300M line-of-sight | Latency: Real-time, zero delay | Input Voltage: 5VDC 500mA MIN (USB power) | AC Adapter Option: 90-240V input, DC output | Max Transmitting Power: 20dBm | Receive Sensitivity: -94dBm | ID Codes: 7 groups settable (7 independent networks) | Indicators: Tricolor LED (red/green/amber) for sync and status | Material: Brass + plastic housing | Item Size: 8 × 2.5 × 2.5cm | Item Weight: 45g per unit | Installation Method: Self-contained (plug and play) | Operating Temperature: Professional stage and DJ use | Modulation: High-efficiency GFSK | Setup: Press button to match ID codes; automatic frequency hopping | Certification: CE, EAC, FCC, RoHS, UL, WEEE | Application: Professional stage lighting, wireless DMX control, touring, festivals, events | Origin: Mainland China | Available Configurations: Receiver only (RX), Transmitter + Receiver (1T1R), 1 Transmitter + 2 Receivers (1T2R), 1T3R, 1T4R, 1T5R, 1T6R

Feature

DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by
console) by wireless way.No time delay when signal data is transmitting, signal data is real time
and rel iably.This product adopts a 2.4G ISM frequency section.High effective GFSK
modulate,communication design; 126 channels jumping frequency automatical ly, high anti-
jamming abi l ity.

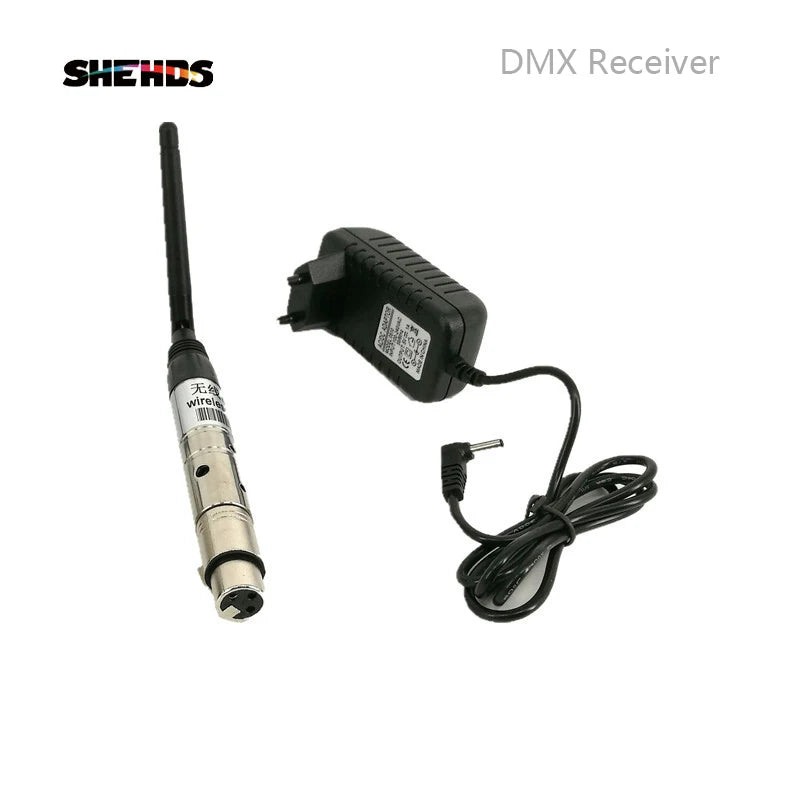

Receiver Product Parameter

1. 2.4G wireless DMX512 R/T
2. 126 channels jumping frequency automatical ly, high anti-jamming abi l ity. to ensure works
rel iabi l ity
3. 7 groups ID code settable,User can use 7 groups individual wireless net without any interfere
4. each other in the same place...(Tricolor LED displaying Indicators)
5. Input voltage:5VDC 500mA MIN
6. Communication distance: 300M (visible distance)
7. Work frequency section: 2.4G ISM,126 channels.frequency section
8. Max transmitting power rate:20dBm
9. Net weight:180g

Establishing Communication

1. Power on DMX512 wireless received board first and then following to power up the transmitted board.
2. Press “Key” button to set same ID value of transmitted board and received board. Please use different ID value if you need use more than 1 group wireless universals at same time in same place.
3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flashes until received same ID value, the more DMX data, the faster the LED flashes.
4. Communication was established correctly.
